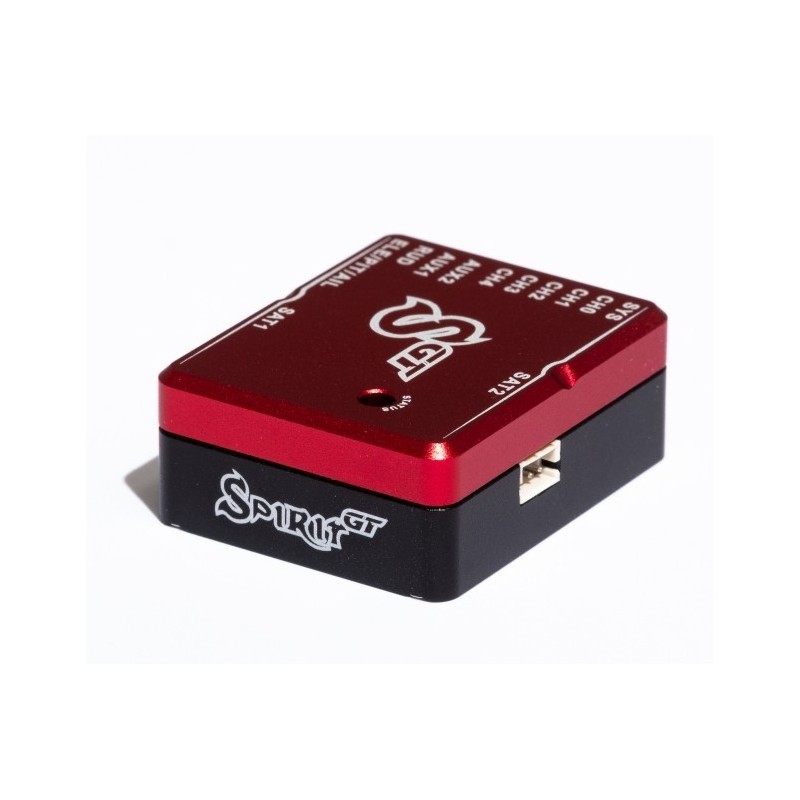

SPIRIT GT FBL unit

€225.00
Tax included

Spirit GT - Evolution of Spirit Pro. Universal flybarless and stabilisation unit for demanding pilots.

Quantity
72h Stock

100% secure payments

Outstanding ARM M7 processor

M7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing features. There is no FBL unit available at the market that offer such power.

This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need.

It packs native telemetry support for Futaba S.BUS2 and even FrSky S.PORT or brand new F.Port protocols.  Without any special cables.

Real-Time Logging capability

Logging of everything - that is now possible for the first time! Until now, logging at 500Hz rate was barely possible. That is not an issue anymore. Thanks to durable Dedicated Memory Chip with long-life!

Version 3.3.0 will unlock all these capabilities. For the first time in the history, you will be able to see how your model was flying in the air! In 3D graphics.

Pressure Sensor

Yes, it is there and fully embedded. Unparalleled precision of 1 Pascal allow extremely precise altitude measurement . With the innovative algorithms and Sensor Fusion technology the precision goes further down. It can be utilized in a various of ways such as Altitude hold or even Automatic Rescue system. Stay tuned for the upcoming firmware!

Industry-leading Motion Sensor

Motion Sensor with 20 bit precision was unimaginable few months ago. Everybody can taste it yourself now.

Superb stability through temperature gradient and Vibration immunity few times better than in any other unit. Antialiasing feature and Spirit algorithms makes the Rescue function Top of the line.

Redundant PowerTrain

With Spirit 2 we have developed separated power supplies for the unit itself and peripherals. Now with Spirit GT design was enhanced to minimize voltage drops even for a peripherals!

Simplified Wiring

Our aim is simplicity. This mean you no longer need a special cables such as FrSky Integration cable or even JETI Integration cable. It can be replaced just with normal stright one.

Gold-plated Connectors

We care about reliability a lot. For big scale helicopters of 800 class or more extreme current amperage can develop. With Spirit GT connectors all losses are minimized.

Extensions

Spirit GT can be extended for basically unlimited servo outputs. If you will ever need to control 8 servos or more, with Spirit GT it will be possible in very near future.

Servos with telemetry feature will be supported in the upcoming update too.

Spirit GT

Hardware

  • Very rigid, CNC milled, anodized and sandblasted enclosure
  • Color: Red and Black, matt
  • Material:  High quality AL6061-T6
  • Dimension: 36.8x29.6x13.9mm, weight: 20g
  • Power supply: 3 - 15V @ 50mA
  • Operating temperature: -10°C to 60°C
  • Latest generation, Ultra Fast ARM processor: 462 DMIPS
  • IMU MEMS sensor with 20bit precision
    (rotation to 2000°/s !)
  • Gold plated PCB with Pb-Free soldering
  • Laser Engraved labels for perfect visibility.
  • Integrated S-BUS Inverter
  • Integrated FrSky Integration cable
  • 2x native Spektrum connectors
  • 3x connector for power supply, 5x for servos
  • Revolutionary GeoLink support (GPS, vario, logger)
  • Spirit Aero support (from 1.6.0 Aero firmware)
  • All-pin protection
  • Redundant internal powertrain for maximum safety
  • Excessive tolerance for brown-outs
  • Dedicated capacitor for peripheral voltage stability
  • Simplified JETI receiver wiring
  • Embedded Pressure sensor
  • Dedicated Memory Chip for Real-Time logging
  • Gold-plated pin headers for high current transmission

Package content

  • Spirit GT unit
  • USB interface
  • 15cm receiver cables
  • 4x 3M VHB doublesided adhesive tape

 Warranty

  • 2 year warranty for the original purchaser
  • 50% discount for damage replacement of the unit

Features

  • Super-smooth flight control
  • Paddle simulation with inexpressible feeling
  • Classic flybar mechanics support
  • Extreme vibration immunity for all helicopter types
  • Spectrum analysis for model diagnostics
  • Flight log with recorded events
  • Easy configuration with setup wizard
  • Smartphone or tablet support via Bluetooth and WiFi
    (Modules are sold separately)
  • Spektrum, Jeti, OpenTX and HoTT radio integration
  • Available for Windows, OSX, Linux, Android, iOS,
    WP, SailfishOS, FreeBSD, Raspberry Pi and more
  • Stabilisation for scale pilots and beginners
  • Reliable, full-featured rescue system
  • Integrated Bank Switching
  • Governor for Electric, Nitro and Gasser Helicopters
  • BEC tester with load verification
  • Support for PWM, PPM, S-BUS, FrSky F.Port,
    Spektrum DSM2/DSMX, JETI Duplex EX Bus,
    SRXL/Graupner SUMD/JETI UDI/JR X-Bus receivers
  • Support for all servo types:
    1520/960/760us @ 50 - 560Hz
  • Support for CCPM 90/120/135/140°
  • Real-Time telemetry log
  • Perfect flight log with 3D visualisation
  • Servo extension board for 8 servos and more

 Manual

  • Available at the Wiki pages.
