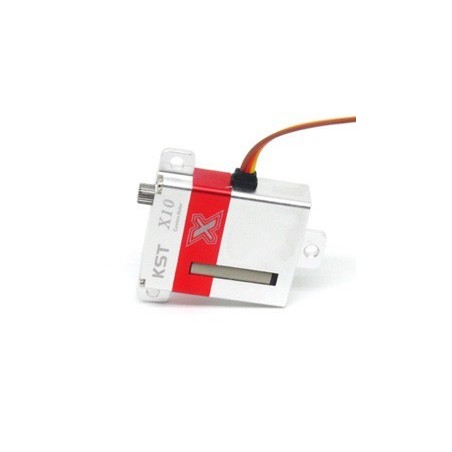

KST X10 WINGS 10mm

New KST X10 servo - a high voltage MKS DS6125 / KST DS125 sized servo with a similar or better speed and torque to the new MKS HV6130.

Operation Voltage(rated) 7.4V

Operation Voltage Range 6.0V-8.4V

Torque
7.5Kg.cm@6.0V
9.5Kg.cm@7.4V
10.8Kg.cm@8.4V

Speed
0.14sec/60°@6.0V
0.12sec/60°@7.4V
0.10sec/60°@8.4V

Weight 28 g

Travel Angle ±50° with 1000-2000us pulse width

Operating Temperature Range -20 to +65 Deg C
